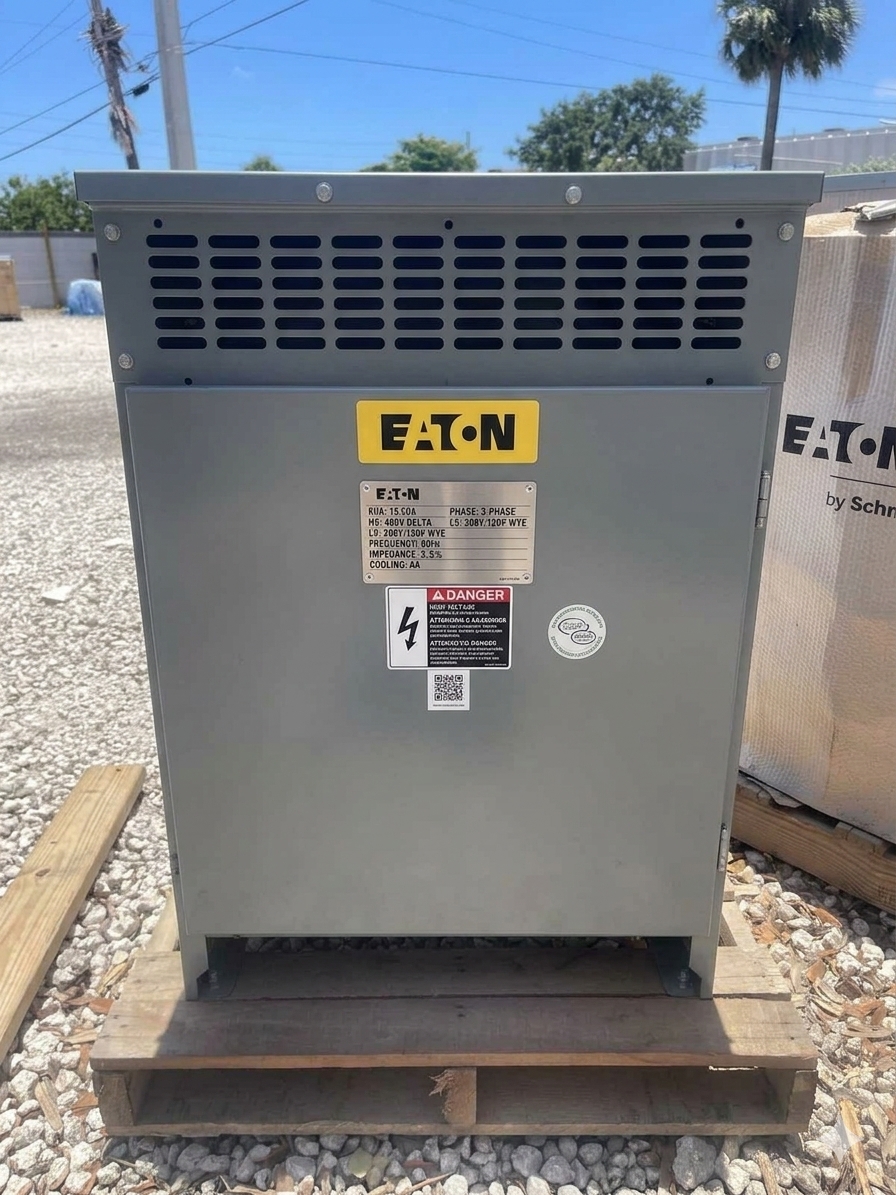

Eaton 15 kVA 3-Phase 480V to 208Y/120V Transformer

An Eaton 15 kVA 3-Phase 480V to 208Y/120V Transformer is designed to step down three-phase 480-volt power to 208Y/120-volt power for commercial, industrial, manufacturing, lighting, and electrical distribution applications. This voltage configuration is commonly used where equipment requires both 208V three-phase power and 120V single-phase power.

Electrical Supplies Unlimited carries and sources Eaton transformers in a wide range of sizes, voltages, and configurations. We buy and sell new, used, surplus, obsolete, discontinued, and hard-to-find Eaton transformers for electricians, electrical contractors, industrial facilities, businesses, and other customers nationwide.

Eaton 15 kVA 480V to 208Y/120V Transformer for Sale

A representative Eaton transformer for this application is the V48M28T15, a 15 kVA three-phase dry-type distribution transformer with a 480V primary and 208Y/120V secondary. This Eaton transformer uses aluminum windings and is designed for commercial and industrial electrical distribution applications.

The Eaton 15 kVA transformer is available in different configurations, including ventilated dry-type models and encapsulated transformers. Depending on the application, customers may need a specific enclosure, winding material, temperature rise, tap arrangement, or mounting configuration.

Common Eaton 15 kVA Transformer Configurations

Eaton 15 kVA 3-phase 480V to 208Y/120V transformers
Eaton V48M28T15 transformers
Eaton 480V delta primary transformers
Eaton 208Y/120V secondary transformers
Eaton dry-type distribution transformers
Eaton ventilated transformers
Eaton encapsulated transformers
Eaton transformers with aluminum windings
Eaton transformers with copper windings
New, used, surplus, discontinued, and obsolete Eaton transformers

Eaton 15 kVA 3-Phase Transformer Specifications

Specifications vary by Eaton model and configuration. The Eaton V48M28T15 is a representative model for the 15 kVA 480V to 208Y/120V application.

Manufacturer: Eaton
Model: V48M28T15
Transformer Type: Dry-type distribution transformer
Design: DT-3
Phase: Three phase
Power Rating: 15 kVA
Primary Voltage: 480V
Primary Configuration: Delta
Secondary Voltage: 208Y/120V
Frequency: 60 Hz
Windings: Aluminum on the V48M28T15 example
Temperature Rise: 150°C
Primary Taps: Two at +2.5% FCAN and four at -2.5% FCBN
Certification: UL Listed

Used Eaton 15 kVA Transformers

A used Eaton 15 kVA transformer can be an economical solution for a replacement, maintenance project, equipment repair, or industrial application. Used transformers may also be useful when an older Eaton model has been discontinued and a direct replacement is difficult to locate.

ESU buys and sells used Eaton transformers and can help identify equipment based on the manufacturer's nameplate, catalog number, kVA rating, voltage, phase, enclosure, and other specifications. Used electrical equipment should be inspected and evaluated by a qualified electrical professional before installation.

Eaton Transformer Replacement

Replacing a transformer requires more than matching the kVA rating. The primary and secondary voltages, phase, frequency, winding configuration, taps, enclosure, temperature rise, physical dimensions, and installation requirements should all be considered.

If you are replacing an older Eaton 15 kVA 480V transformer, ESU can help locate a current equivalent, used transformer, surplus unit, or discontinued Eaton model. Providing a photograph of the transformer nameplate can help us identify the correct equipment.

Obsolete and Hard-to-Find Eaton Transformers

Eaton has produced many transformer models and configurations over the years, and older models may eventually become discontinued or difficult to source. ESU specializes in locating obsolete Eaton transformers, discontinued transformers, used transformers, surplus transformers, and hard-to-find electrical equipment.

If your normal electrical supplier cannot locate a replacement, contact Electrical Supplies Unlimited. We may have the transformer in inventory or be able to locate one through our network of electrical equipment sources.

We Buy Eaton Transformers

ESU also buys Eaton transformers. If your company has surplus, excess, unused, used, discontinued, or obsolete Eaton transformers, contact us about selling the equipment. We purchase electrical equipment from contractors, electricians, industrial facilities, businesses, and other equipment owners.

When contacting us about equipment for sale, provide the Eaton model or catalog number, kVA rating, primary and secondary voltage, phase, quantity, and condition whenever possible. Photographs of the transformer and nameplate are also helpful.

Why Buy an Eaton Transformer from ESU?

Over 40 years of experience with electrical equipment
New, used, surplus, obsolete, and discontinued equipment
Specialization in hard-to-find electrical transformers
Eaton and other major transformer manufacturers
Three-phase and single-phase transformers
Commercial and industrial electrical equipment
Nationwide service for electricians, contractors, businesses, and industrial customers

Find an Eaton 15 kVA 480V to 208Y/120V Transformer

If you are looking for an Eaton 15 kVA 3-phase 480V to 208Y/120V transformer, contact Electrical Supplies Unlimited at 858-558-2850. Tell us the transformer model number, kVA rating, primary voltage, secondary voltage, phase, enclosure, and any other information available from the nameplate.

ESU can help locate Eaton transformers for new installations, replacement projects, maintenance applications, equipment upgrades, and hard-to-find electrical applications.

More Transformer Resources

Electrical Supplies Unlimited offers a wide selection of electrical transformers and electrical distribution equipment. We also buy and sell used transformers, surplus electrical equipment, and hard-to-find electrical components.

For help identifying an Eaton transformer or locating a specific 15 kVA 480V to 208Y/120V transformer, contact ESU at 858-558-2850.
